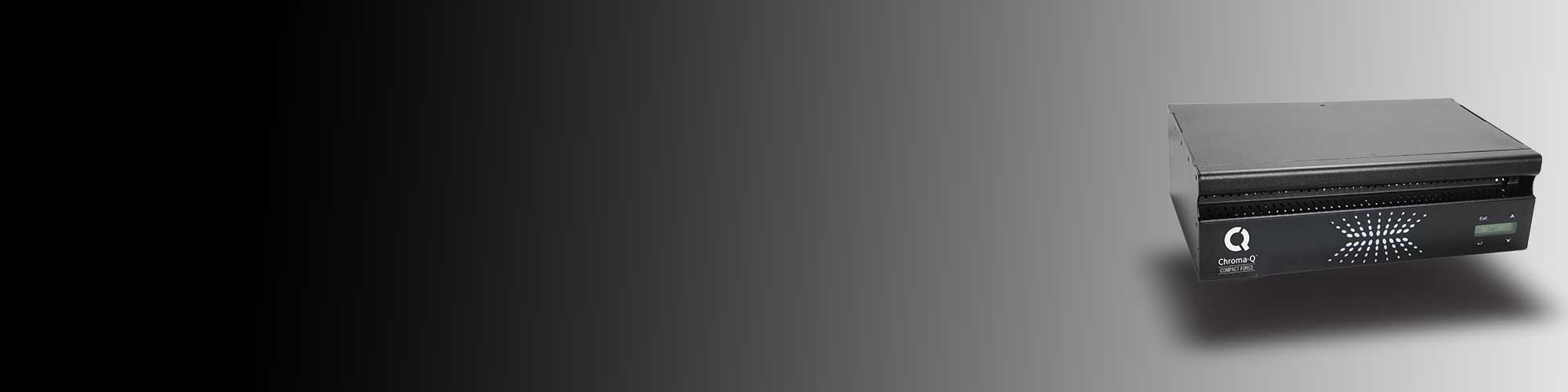

Chroma-Q® Color Force Compact™ 15 Way Power Supply

The Chroma-Q® Color Force Compact™ 15 Way Power Supply supplies power and data for a maximum of 15 Color Force Compact™ or Studio Force Compact™, D or V fixtures. The Compact PSU15 unit features 3 XLR4 outputs, each with a maximum capacity of 5 fixtures daisy-chained together.

Compatibility with industry standard control consoles is assured. DMX control modes are available via ANSI E1.11 USITT DMX-512A control protocol with pre-programmed looks and stand-alone options.

Request A Demo

Key Features

  • Controls up to 15 Color Force Compact fixtures
  • 18 control modes
  • 3 grouping modes
  • 23 pre-programmed looks
  • Stores up to 31 user programmed looks
  • Can be mounted in a standard 19" rack or hung from a truss
  • Backlit LCD display
  • Wireless control between units as receiver and transmitter
Dimensions 412mm x 133mm x 268mm / 16.9" x 5.2" x 10.5"
Weight 9.5kg /21lbs
Shipping Dimensions 508mm x 203mm x 330mm / 20" x 8" x 13"
Shipping Weight 11.3 kg / 25 lb
Power Input Rating 100-120V~, 10A ; 200-240V~, 5A ; 50-60Hz
Power Input Connector IEC
Power & Data Input Connector XLR 4-pin
Power & Data Output Connector XLR 4-pin
Control Protocol ANSI E1.11 USITT DMX 512-A, Wireless Option
Cooling System Forced - 3 x fans
Operating Temperature 0°C - 40°C
Contruction Power coated steel
Colour Black
Built-In Hardware Detachable rack-mounting brackets "Rack Ears" and M4 pem nut provision for optional bumper feet installation
IP Rating IP20
Approvals CSA C22. No. 166-M1983: R2008 CAN/CSA-C22.2 No. 60950-1-07 UL 60950-1:2007, EN 60950-1/A1:2010
