Studio Force D 12 Phosphor™

Custom LED Film & TV Lighting

The new Chroma-Q® Studio Force D 12 Phosphor™ is a 5,600K CCT, daylight white fixture which utilises innovative LED technologies found in the Studio Force™ range to provide an equivalent soft edge output to a fluorescent fixture - up to 8,210 lumens - developed specifically for use in TV, film and broadcast studio environments. Other features include an extremely smooth uniform wash, extra soft beam, theatrical grade dimming, and laboratory calibration to match Black Body Locus. Designed for practicality, the unit is equipped with a manual control mode, colour touch screen interface, fanless, studio & full modes for maximum control of the units, and a range of optional accessories.

Key Features

  • 5,600K CCT daylight white
  • Extreme output – up to 8,210 lumens
  • Extra soft beam – very wide output
  • Extremely smooth, uniform wash
  • Theatrical grade dimming
  • Ideal for film and studio applications
  • Factory calibrated to match Black Body Locus
  • 335mm / 13.2" length ideal for floor, wall, or truss mounting
  • Camera friendly
  • PowerCon input and output for easy daisy chaining of fixtures
  • A broad range of accessories available, including a barn door and spigot adaptor
  • Fanless, studio & full control modes
  • Intuitive colour touch screen interface
  • Flat end plates for seamless wall-washing
  • Built-in power supply
  • Hidden quick-release fixings
  • Rugged extruded aluminium body

Part Number: CHSFDP12

Request A Demo

Extreme Output
With an extreme output of up to 8,210 lumens, the Studio Force D 12 Phosphor™ packs an impressive punch for its size.

Multi-purpose
The Studio Force D 12 Phosphor™ is specifically designed for film and studio soft lighting applications. Optional accessories include a spigot adaptor, egg crate louver, top hat, half top hat, and barn door.

Colour
The Studio Force Phosphor™ range includes ColorSure™ technology for enhanced consistency across each light engine and when using multiple fixtures.

Optics & Dimming
The Studio Force Phosphor™ range's camera-friendly custom optical design provides a smooth, uniform output, matched by theatrical grade dimming.

Practical & Mechanical
On the outside, the Studio Force D 12 Phosphor™ has been designed to provide maximum versatility and ease of use. The fixture features a colour touch screen interface for easy operation and a full manual control mode.

The built-in power supply, hidden quick release fixings requiring no tools, and PowerCon and 5-pin DMX connections in and out provide fast deployment and simple cable management.

The Studio Force Phosphor™ range also features fanless, studio & full modes for maximum control of the units, flat end plates for seamless wall-washing, and a rugged extruded aluminium body.

Product Code CHSFDP12
Dimensions* 335mm x 190mm x 218mm / 13.2"x 7.5" x 8.6"
Weight 4kgs / 9lbs
Shipping Dimensions 432mm x 343mm x 279mm / 17" x 13.5" x 11"
Shipping Weight 6kgs / 13lbs
Power Supply Built-in
Power Input Rating 100-240V AC, 50-60 Hz, 160VA
Power Factor 0.998
Power Consumption 150W
Typical Power & Current Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connector In/Out PowerCon
Data Connectors In/Out XLR 5-pin
Control Protocol ANSI E1.11 USITT DMX 512-A
Cooling System Forced - 1 fan
Operating Temperature 0°C to 40°C
Construction Anodised aluminium extrusion
Colour Black
Built-In Hardware Quick release lever for tilt adjustment
IP Rating IP20
Approvals CISPR 22/EN55022 & CISPR 24/EN55024, ICES- 003 & FCC Part 15 Subpart B, CSA C22. No.166- M1983:R2008 UL 1573:2010; UL 8750:2009
LED Engines 2
LEDs Per Engine 24 Blue LEDs
Total LEDs 48
Control Modes 1 channel Level,
1 channel Look Sel,
Manual/Mstr,
Slave,
Look Store
Dimming Curve Theatrical
Variable Effects Engine N/A
Effects Parameters N/A
Hot Lumen Output Up to 8,210
Optics Remote phosphor panel
Beam Angle Softlight
Beam Distribution Symmetrical direct illumination
CCT 5600K (+/- 200K)
Colour Gamut Performance enhanced
CRI Up to 71
Lamp Life L70 at 50,000 hours

Studio Force Phosphor™

PDF Download

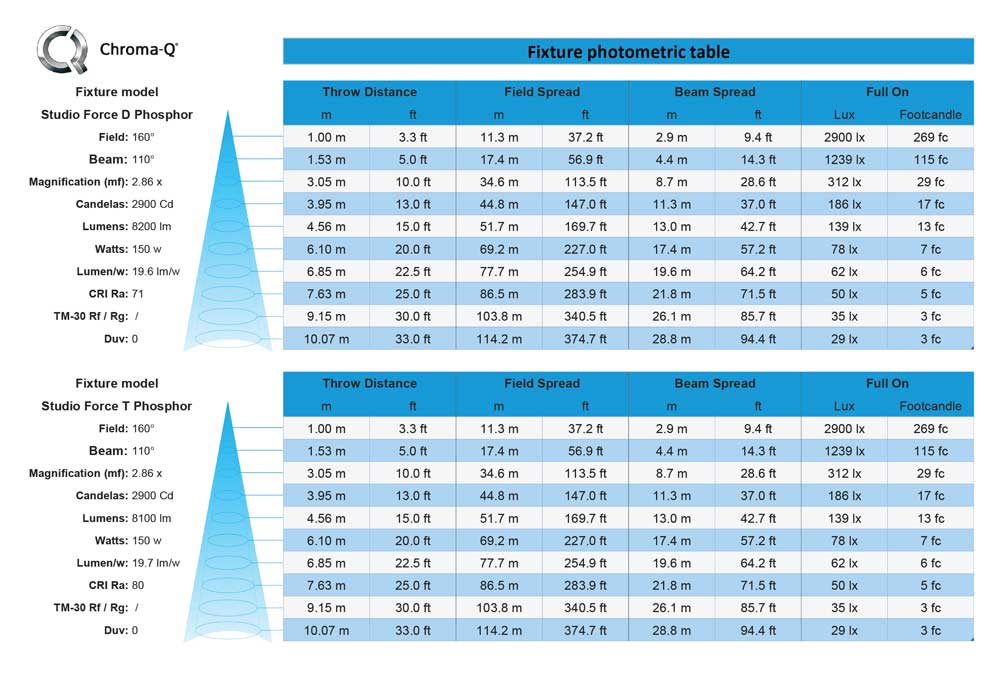

Photometrics Studio Force Phosphor

Photometrics Studio Force Phosphor
