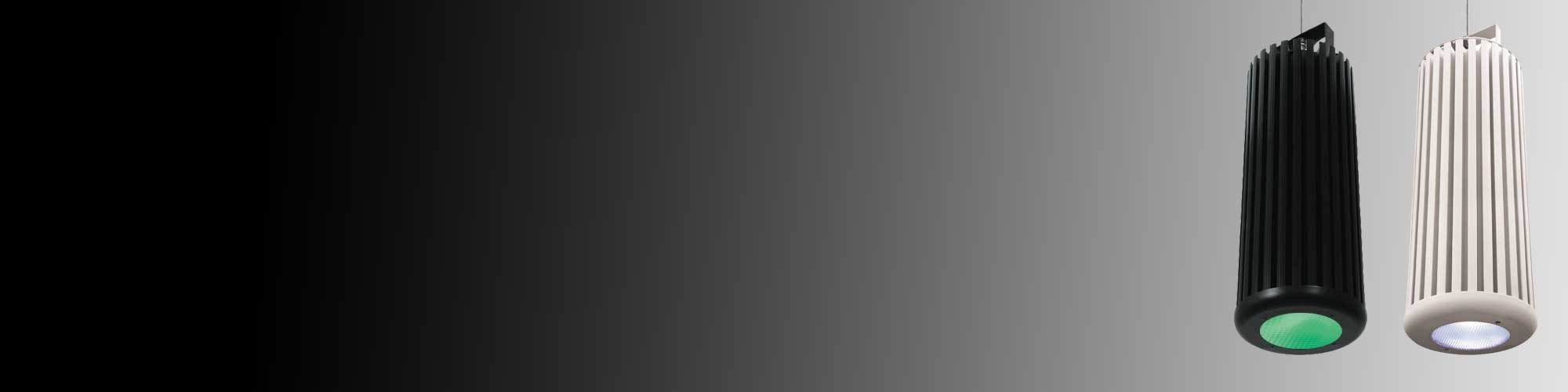

Inspire XT™ RGBW

Colour Changing & White LED House Lights. 9,500 lumens, typical ceiling height up to 75'

The Chroma-Q® Inspire XT™ LED house light is the most powerful fixture in the range, delivering up to 9,500 lumens. Including all the features of the Inspire™ & Inspire Mini™ with twice the output, it is ideal for situations that require the same high-quality white and coloured lighting with even more output. In addition, it uses some of the innovative core technologies found in other award-winning Chroma-Q® products.

All Inspire models in the range provide a choice of beautiful whites, soft pastels and bold saturates ---all from one fixture. By incorporating industry standard DMX-512 control, the Inspire is able to integrate seamlessly with an existing DMX infrastructure and can be controlled by any DMX-supported lighting console. With fully homogenised colour mixing and a choice of three different beam spreads, the Inspire XT™ provides an excellent selection of stunning mixed colours and 'true' whites, with no unsightly colour separation shadows. It also features an energy-efficient LED design providing reduced maintenance and running costs.

Key Features

  • Fully homogenised beam
  • High-quality white lighting and RGBW colour-mixing
  • Beautiful whites, soft pastels and bold saturates - all from a single fixture
  • Ideal for house light replacements
  • Seamlessly integrate stage & house lighting
  • Convection cooled for quiet operation
  • Extremely smooth, uniform output
  • Theatrical grade dimming
  • Powerful – up to 9,500 lumens
  • Holographic spread lenses included allowing for three beam spreads
  • Adjustable 1,000K to 10,000K CCT
  • High CRI of 90
  • Exceptional fixture-to-fixture consistency
  • Made in North America
  • Built-in power supply
  • Low energy consumption

This product replaces the Inspire™ RGBW.

Request A Demo

Inspire™ XT Ordering Options

Multi-Purpose

Fusing entertainment, theatrical and architectural lighting capabilities, the Inspire™ has the ability to seamlessly transform the look and feel of a performance venue, themed retail space, or house of worship.

A Truly Creative Tool

Whether used in entertainment, architectural, or house of worship context, the Inspire™ provides designers with a tool to create environments that seamlessly transcend the physical barrier between the stage and audience through the creative use of light and colour. With Inspire, effects can range from a subtle shift in colour temperature to bold and dynamic colour changes.

Colour

With RGBW colour mixing providing a high CRI of up to 90, the Inspire can achieve extremely accurate colour matching.

Convection Cooled

Inspire™ fixtures are passively cooled and have no fans or fan noise for quiet operation. Their low energy consumption means that they generate low amounts of heat.

DMX-512 Control

Using the Inspire™ house light's DMX-512 input, it is now possible to seamlessly map ceiling lighting, introducing gorgeous soft colour effects and warm amber looks to engage and captivate the room.

Camera Friendly

With an adjustable frequency from 1,200 - 9,600Hz, the Inspire™ house light is extremely camera-friendly and can be adjusted to eliminate camera flicker and lens glare.

Optics & Dimming

The Inspire's custom optical design provides a smooth, uniform output, matched by theatrical grade dimming.

Product Code CHINHLRGBWXT / CHINHLRGBWXTW / CHINHLRGBWA..
Net Dimensions (WxHxD) 181mm x 557mm x 181mm / 7" x 22" x 7"
Net Weight 7.5 kg / 16.5 lbs
Shipping Dimensions (WxHxD) 305mm x 661mm x 305mm / 12" x 26" x 12"
Shipping Weight 9.5 kg / 21 lbs
Power & Connections
Power Supply Built-in
Power Input Rating 100-240V AC 50-60Hz 120VA
Power Factor 0.9
Power Consumption 135W @230W (Maximum Intensity) 7.5W @230W (Stand-By)
Addressing 135W @240W (Maximum Intensity) 7.5W @240W (Stand-By)
Residual current (max) 0.49mA
Idle Power Consumption 6.2 W @110V, 7.5W @220V
Power Connectors In/Out Terminal Block: plug-in screw connector (Input only)
Data Connector In/Out Terminal Block: plug-in screw connector
Addressing: XLR 5 Pin
Max cable run N/A
Operating Temperature 0°C to 40°C
Control Protocol ANSI E1.11 USITT DMX 512-A
Cooling System Convection
Construction Anodised aluminium extrusion
Colour Black / White
Built-In Hardware Mounting bracket (12.7mm / 1/2" diameter hole)
IP Rating IP20
Approvals CISPR 22/EN55022 & CISPR 24/EN55024, ICES-003 Issue 4:2004 / FCC Part 15 Subpart B:2010, CSA C22.2 No. 166-M1983: R2008, UL 1573:2003 (R2010), IEC 60598-2-17
Earth leakage 0.49mA
Control & Photometrics
Control Modes RGBW Single (up to 4 ch x fixture count in system), RGBW Output (4 ch per output – 4, 8 or 12 ch), Tungsten (1 ch per data output), 0-10V, Look Recall, Alarm, Emergency
Addressing: 7 channels fxHSI, 5 channels sRGBW, 3 channels HSI, 4 channels RGBW, 1 channel Look sel, Mastr StndAlon, Slave StndAlon
Dimming Curve Theatrical
Variable Effects Engine Yes
Effects Parameters Colour speed, range, step, intensity effects
Hot Lumen Output Up to 9,500
Optics Fully homogenised
Beam Angle Approx 32° (Narrow lens), Approx 42° (Medium lens), Approx 65° (Wide lens)
Beam Distribution Symmetrical direct illumination
CCT Adjustable 1,000 - 10,000K
Colour Gamut Performance enhanced
CRI 90
TLCI 70
Sound level 32 db
Lamp Life L70 at 50,000 hours
  • CHINTHB: Top Hat/Snoot for Inspire (Black)
  • CHINTHW: Top Hat/Snoot for Inspire (White)
  • CHINYK: Yoke Mount Kit for Inspire (Black)
  • CHINYKW: Yoke Mount Kit for Inspire (White)
  • CHINBDB: Barndoor for Inspire (Black)
  • CHINBDW: Barndoor for Inspire (White)
  • CHINSIK15B: Blind Sloped Ceiling Kit - 0 TO 15 Degree Angle (Black Trim)
  • CHINSIK15W: Blind Sloped Ceiling Kit - 0 TO 15 Degree Angle (White Trim)
  • CHINSIK30B: Blind Sloped Ceiling Kit - 20 TO 30 Degree Angle (Black Trim)
  • CHINSIK30W: Blind Sloped Ceiling Kit - 20 TO 30 Degree Angle (White Trim)
  • CQ632-9120: Blind Ceiling Mount Kit (Black)
  • CQ632-9121: Blind Ceiling Mount Kit (White)
