Home Magic Box™ PS12

Magic Box™ PS12

Lighting Control & Data Distribution Solutions

Please note this item was discontinued in January 2022.

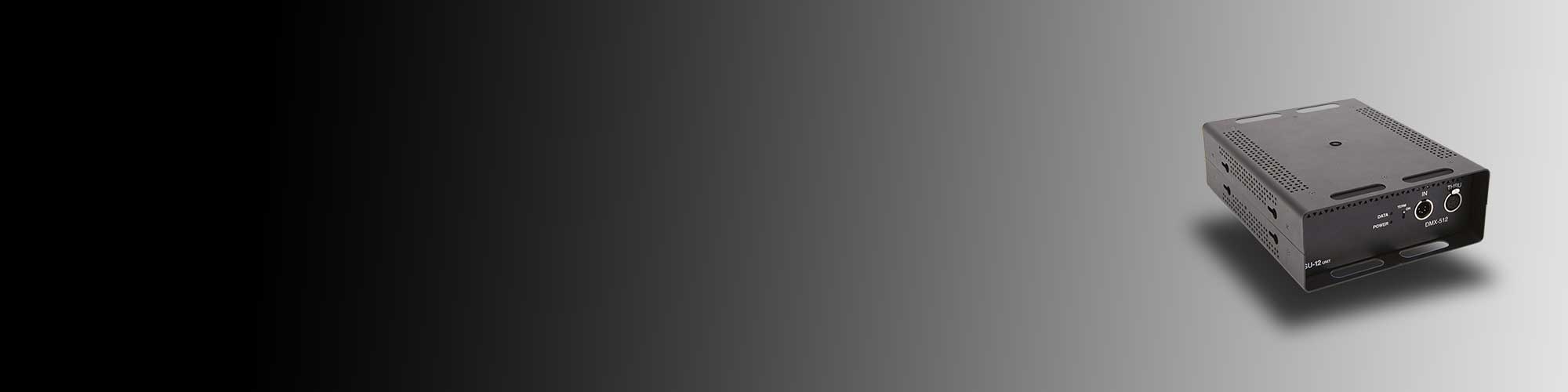

The Chroma-Q® Magic Box™ PS12 power supply has a maximum capacity of 12PU and features 3 individual XLR4 outputs each with terminated return inputs. The PS12 has been designed for cable loops of up to 66m / 200ft per output. The unique Magic Box™ interlocking enclosure facilitates rack mounting when used in pairs and truss mounting via captive nut insert.

Key Features

  • Provides 3 circuits of combined 24VDC power and DMX signal
  • Designed for cable loops of up to 60m / 200ft per output
  • Features 3 individual XLR4 outputs each with terminated return inputs
  • Provides a maximum power capacity of 12PU
  • Unique Magic Box interlocking enclosure
  • Designed for customised front house racks

Request A Demo

Magic Box PS12 Ordering Options

FEATURES

• Provides 3 circuits of combined 24VDC power and DMX signal suitable for Chroma-Q® fixture accessories.
• Provides a maximum power capacity of 12PU (see notes on PU values in Overall Specifications).
• Features 3 individual XLR4 outputs each with terminated return inputs.
• Designed for cable loops of up to 60m/200ft per output.
• Designed for customised front of house racks.
• Unique Magic Box interlocking enclosure facilitates easy rack mounting when used in pairs and easy truss mounting

Product Code CHMBPS12
Dimensions 220mm x 88mm x 280mm / 8.6" x 3.5" x 11"
Weight 3.2kg / 7.1lbs
Power 100-240V, 50/60Hz, 200W, IEC chassis male
Power Connector Input IEC chassis male
Power Connector Output XLR 4-pin
Data Connectors In/Out XLR 5-pin
Control ANSI E1.11 USITT DMX 512-A
  • CHMBEAR: Pair of Magic Box rack ears
  • CHMBPS12: Chroma-Q Magic Box PS12
